Camcool components

Transport Clamp Cells

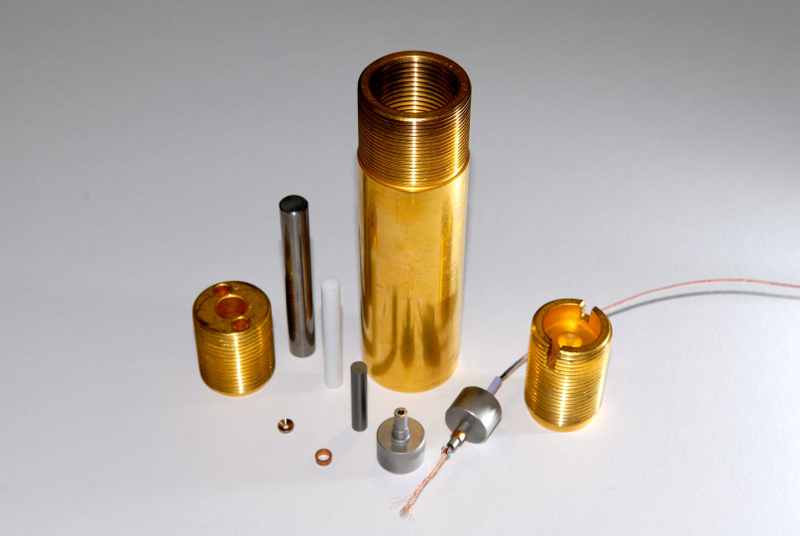

The larger Transport Clamp Cell (35mm outer diameter, 4mm sample space diameter) has an electrical feedthrough allowing the access of more than 10 pairs of wires into the pressurised volume. The pressurised volume is large enough for multiple samples as well as the manometer to be loaded at once. It is also possible to put a small susceptibility coil in this volume surrounding the sample in order to carry out highly sensitive magnetic measurements. This cell can achieve low temperature pressures of up to 25kbar (2.4GPa) and room temperature pressures of up 30kbar (3.0GPa).
